Freetour 2.0 Upgrade Kit

Freetour 2.0 Upgrade Kit

$443.00
$443.00
Sale Sold out
色

Stock is limited, so if you are interested in purchasing, please make your reservation as soon as possible.

The Freetour 2.0 Upgrade Kit is a kit for upgrading to CAST Freetour 2.0 if you already own Look Pivot 15/18 or Look Pivot 2.0 15/18.

Does not include Look Pivot 15/18 or Look Pivot 2.0 15/18.

You will need a Pozidriv #3 screwdriver to disassemble the toe piece of your Look Pivot 15/18 or Look Pivot 2.0 15/18 and assemble it into the kit's Toe Pedestal.

    Important points to note when purchasing CAST Freetour 2.0
    The CAST Freetour 2.0 is installed with the same hole pattern as the Look Pivot 2.0 15/18 (or Look Pivot 15/18), plus two new holes for the brake lock. The holes for the Look Pivot 2.0 15/18 must be accurately located using a gauge (jig) or template, and the holes must be drilled correctly with the correct drill. A template sticker for the Brake Lock/Bail Set is included in the kit.

    We also sell the Look-CAST Jig Attachment, which can be attached to the current Look gauge Adult Mounting Template (FCFF001).

    If you purchase only the Freetour 2.0 Upgrade Kit, we will not install it for you. If you would like us to install it for you, please purchase the full set with the CAST Freetour 2.0 Pivot 2.0 15/18 binding.

    CAST Freetour 2.0 Specifications

    • Color: Raw / Purple
    • Brake width: 95mm/105mm/115mm/130mm
    • Release value range:
      • Look Pivot 2.0 15 DIN/ISO 6 - 15
      • Look Pivot 2.0 18 DIN/ISO 8 - 18
    • Elastic travel: 45mm (toe), 28mm (heel)
    • Compatible soles: GripWalk ISO 23223 (GripWalk) / Alpine ISO 5355 (Alpine sole) / Touring ISO 9523 (Touring sole)
    • Climbing support: 8°, 12°
    • Materials: A7075 (super duralumin), machined aluminum, POM (polyacetal), stainless steel
    • Total weight in Walk mode: 1,016g (one side, brake width 115mm, GripWalk/Alpine AFD, including screws)
      • Tech Toe: 87g
      • Base Plate: 59g (including screws)
      • Pivot 2.0 15/18 Heelpiece: 774g (Brake width 115mm, including screws)
      • Brake Lock/Bail Assembly: 96g (including screws)
    • Total weight in glide mode: 1,343g (one side, brake width 115mm, GripWalk/Alpine AFD, screw included)
      • Pivot 2.0 15/18 Two-piece, Toe Pedestal & AFD: 414g (GripWalk/Alpine AFD) / 408g (Touring AFD)
      • Base Plate: 59g (including screws)
      • Pivot 2.0 15/18 Heelpiece: 774g (Brake width 115mm, including screws)
      • Brake Lock/Bail Assembly: 96g (including screws)

    What's included in the product

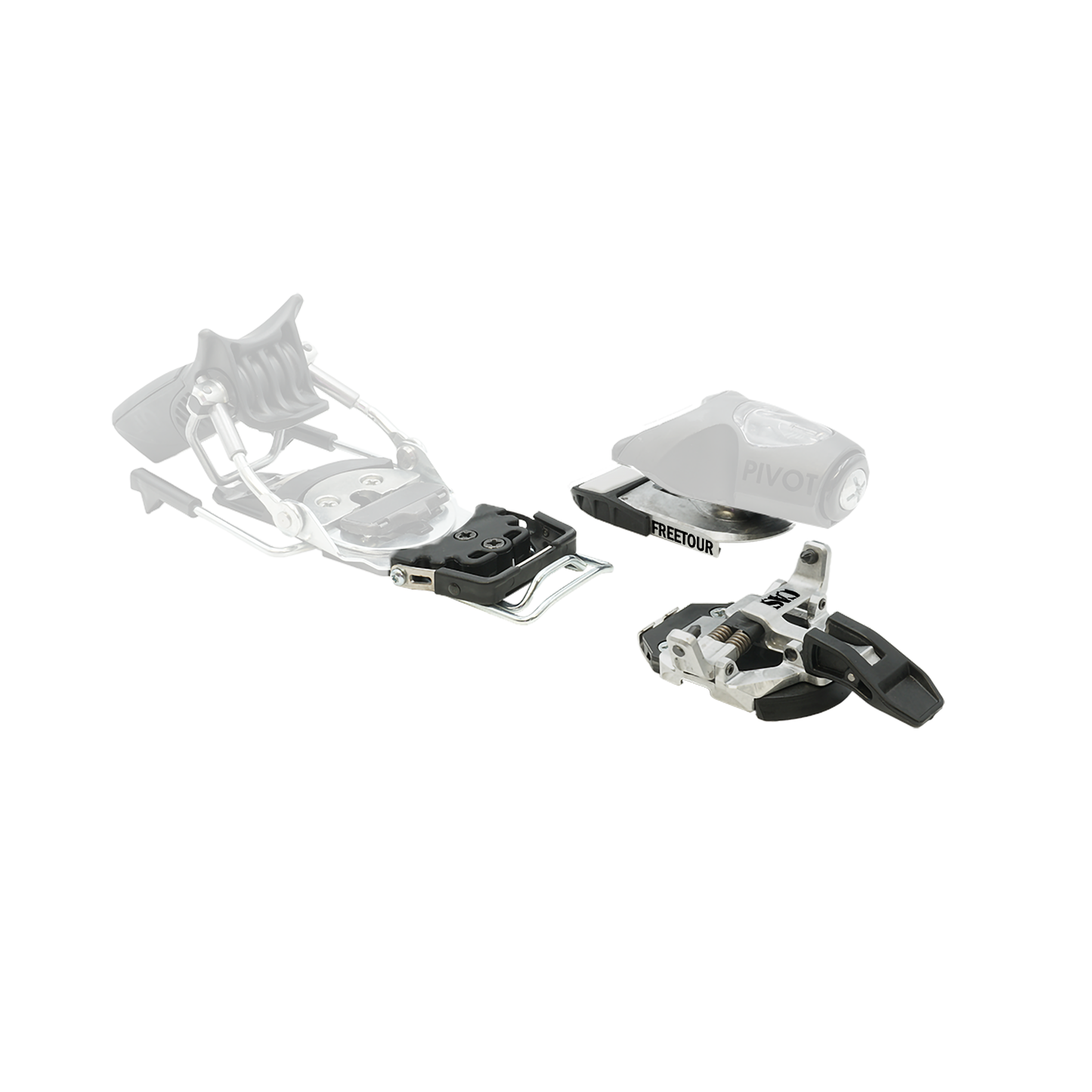

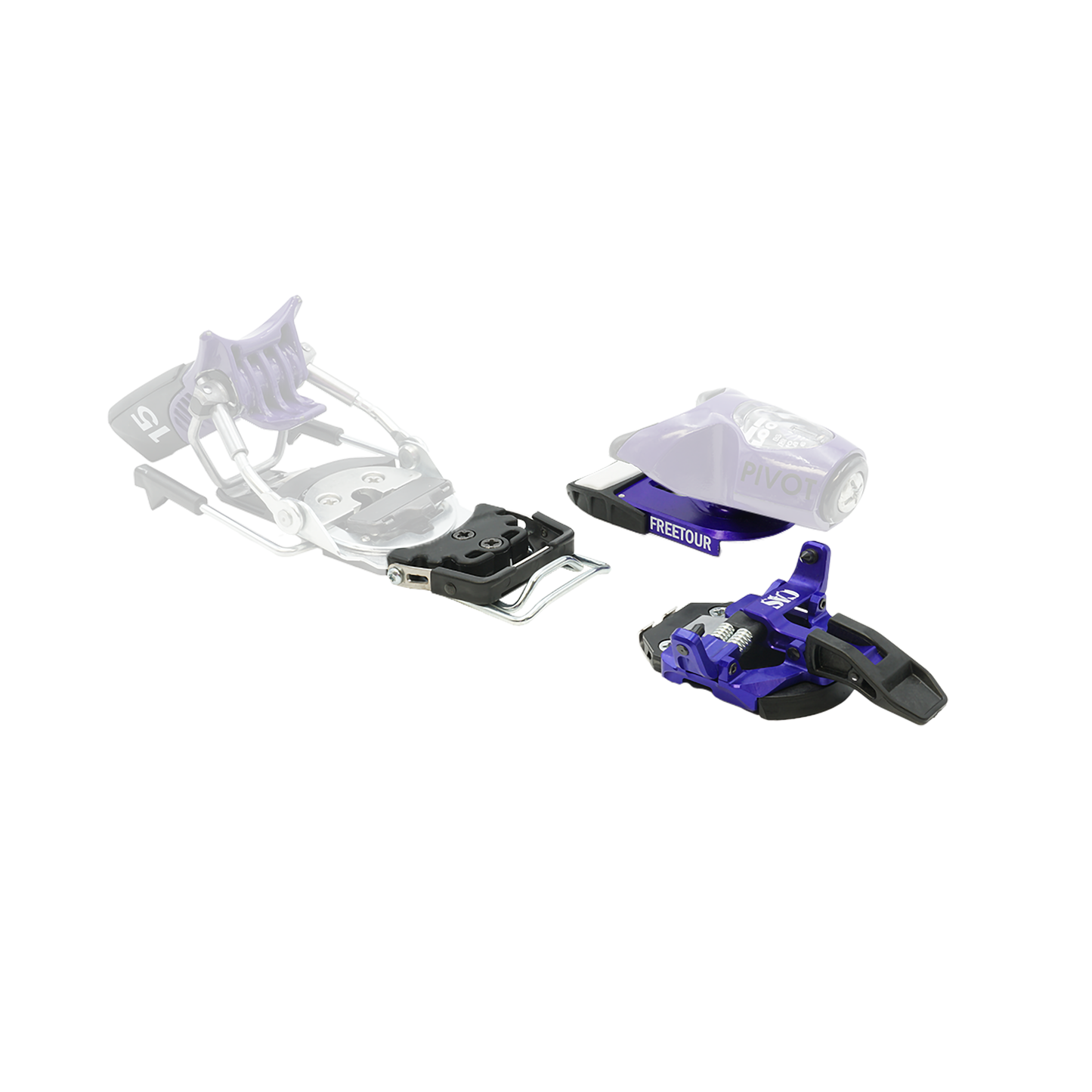

    CAST Freetour 2.0 Upgrade Kit

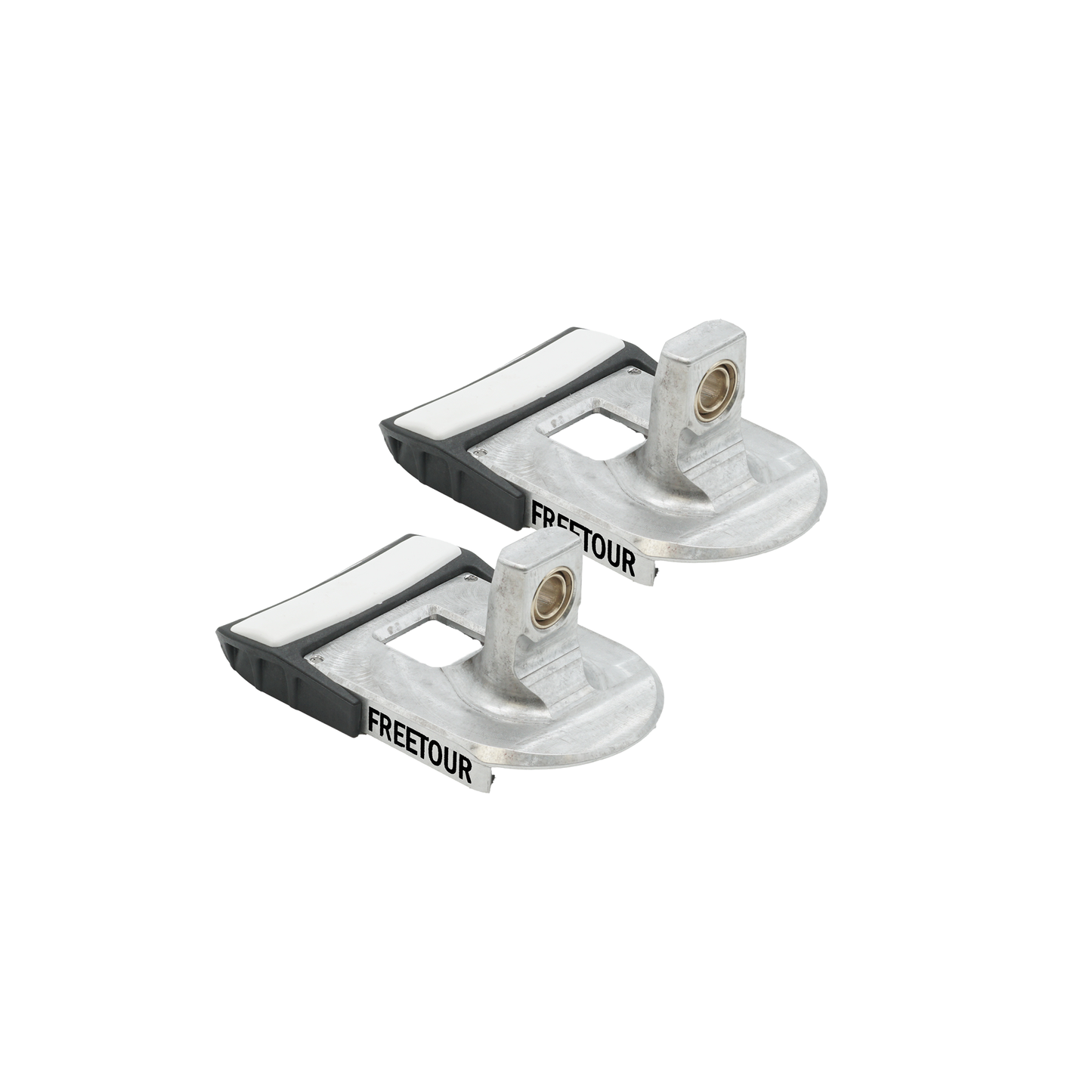

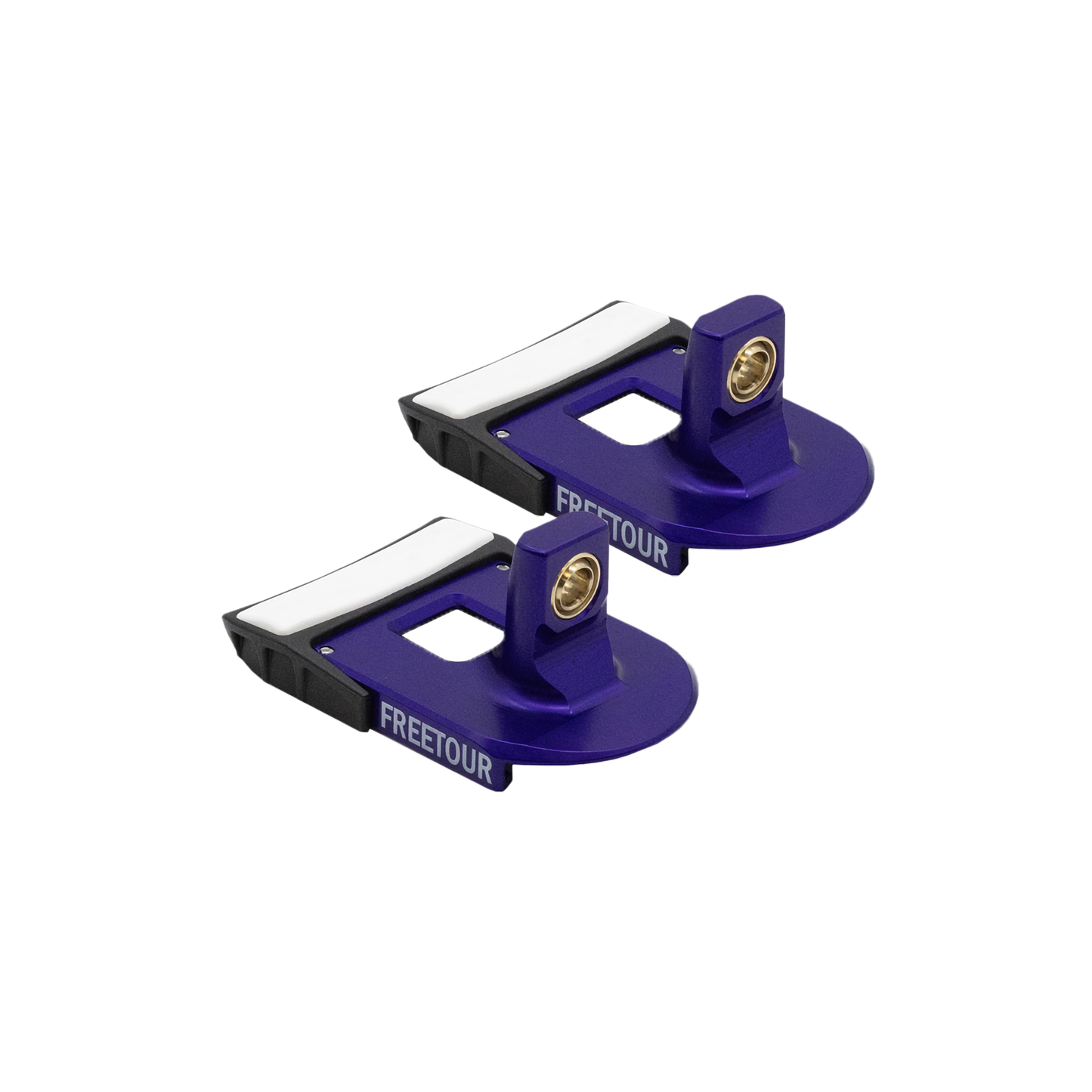

    • 2 x Freetour 2.0 Toe Pedestals

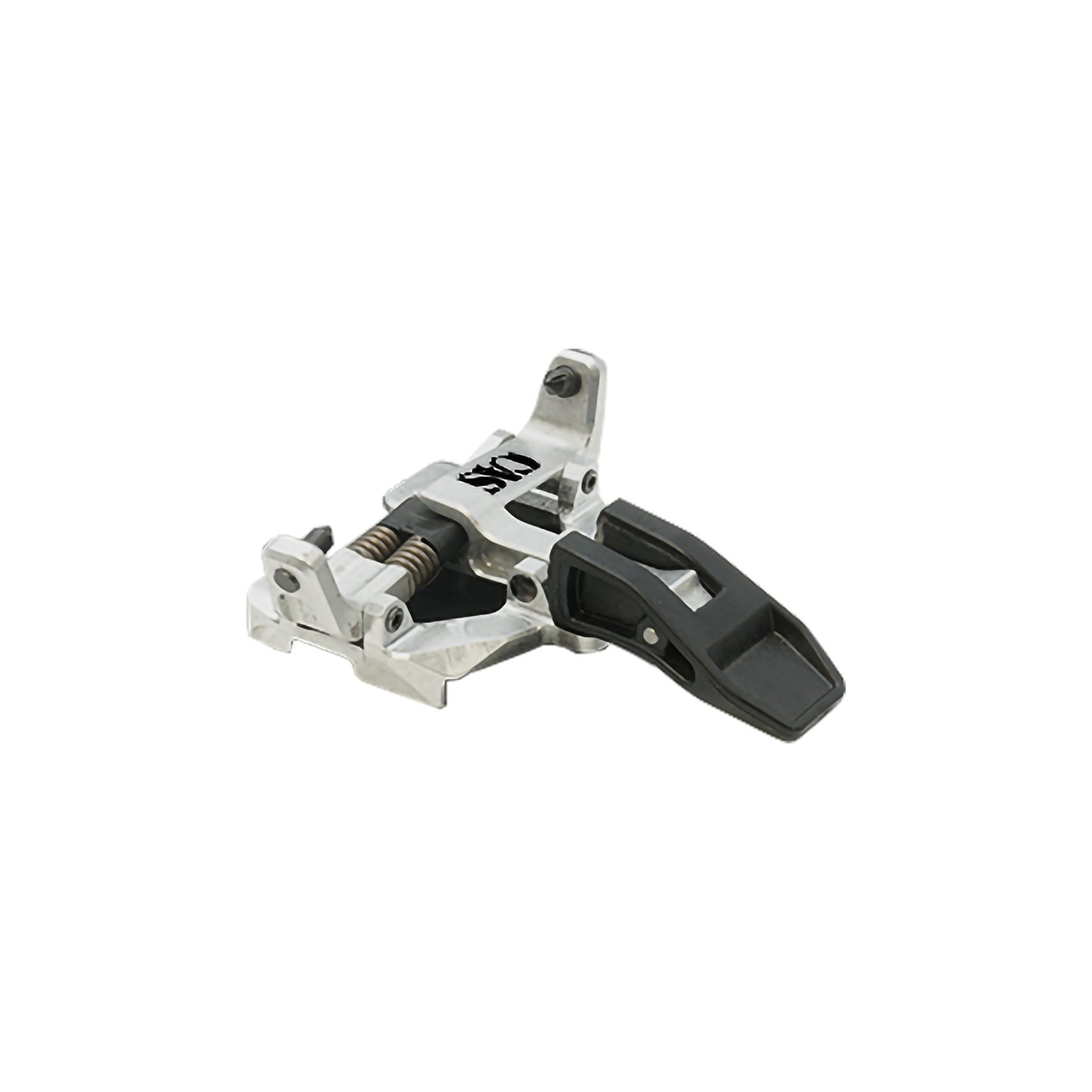

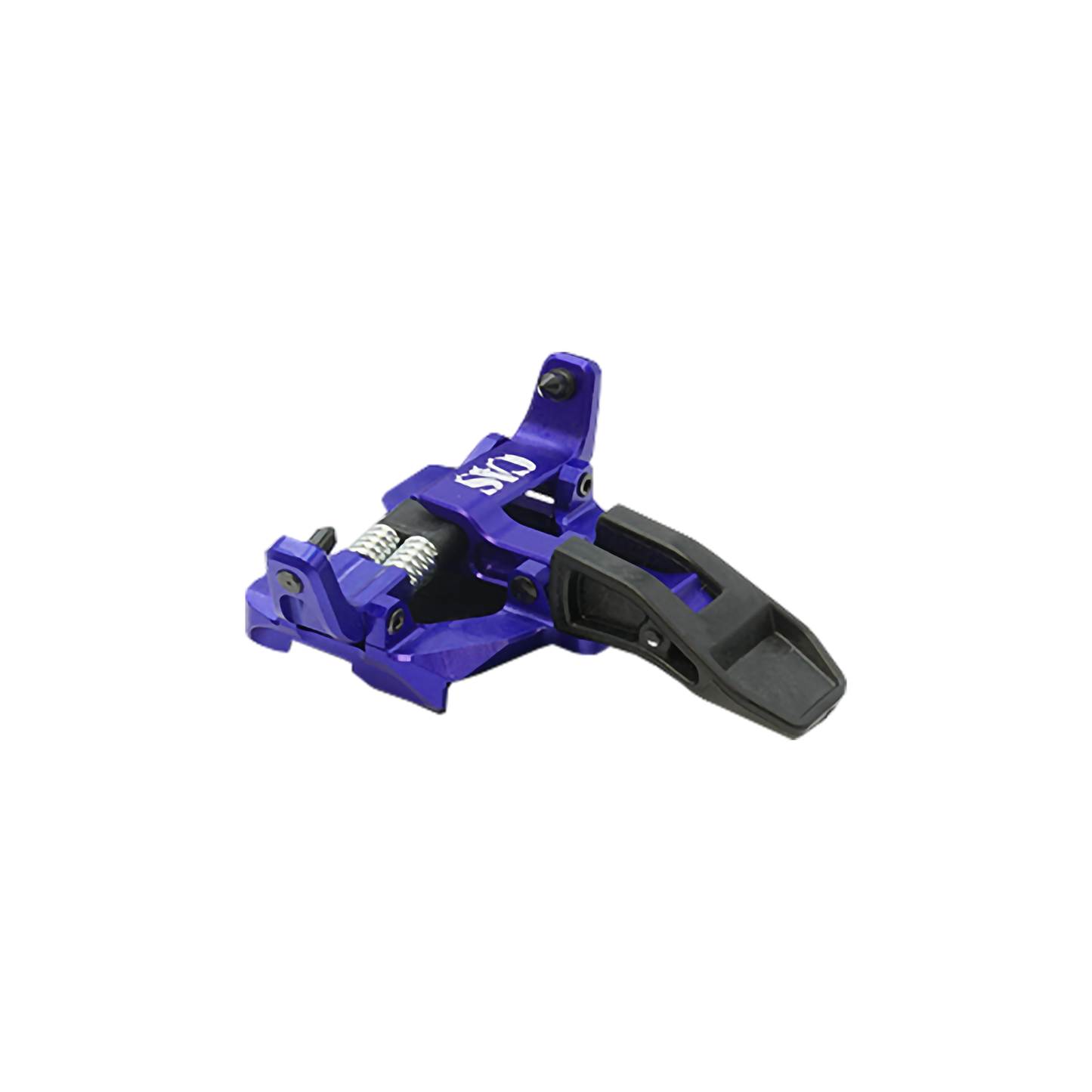

    • Freetour 2.0 Tech Toe x 2
    • 2 x Freetour 2.0 Base Plates

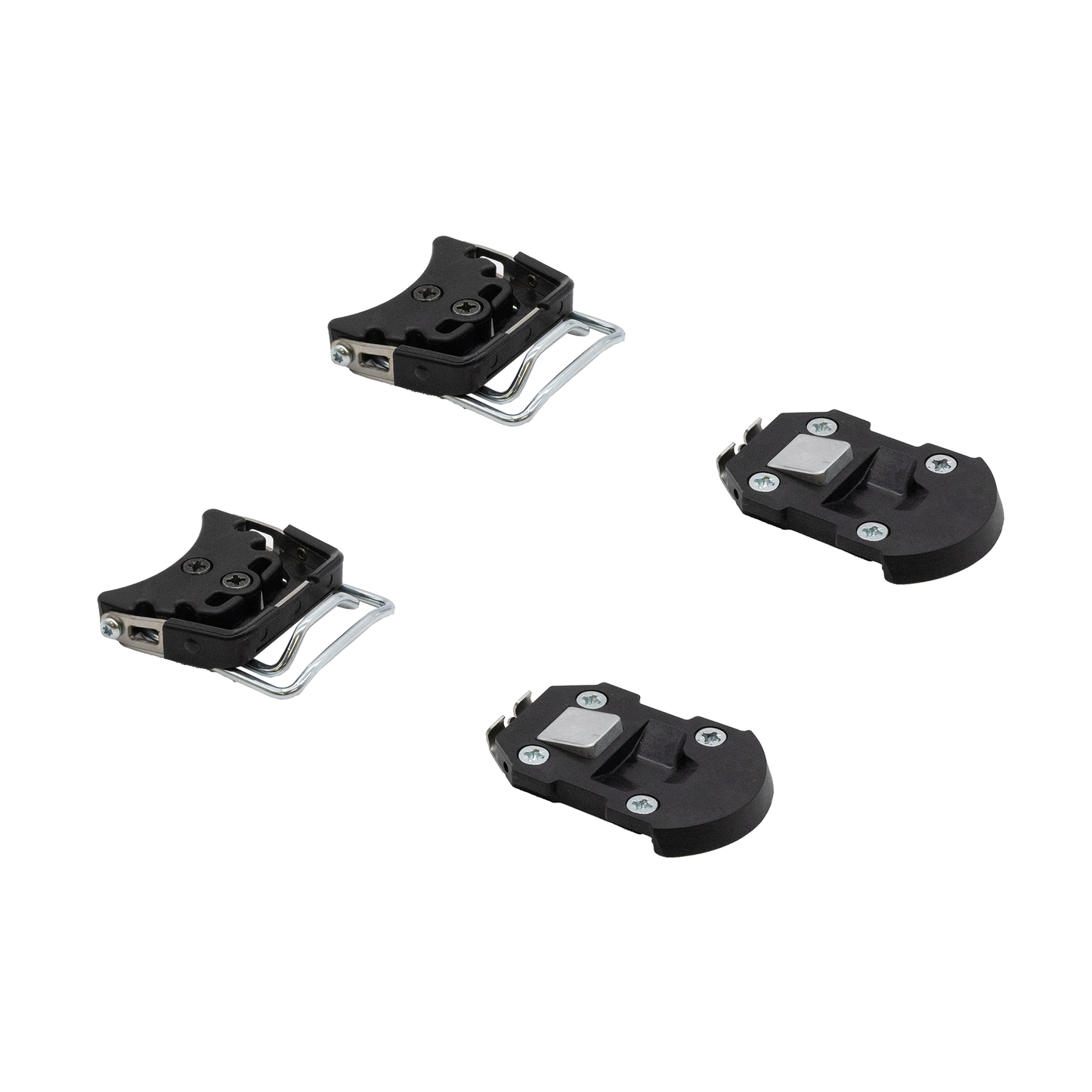

    • Freetour 2.0 Brake/Lock Bail Set x 2
    • Freetour 2.0 Screw Pack x 1
    • Freetour 2.0 GripWalk / Alpine AFD x 2
    • Freetour 2.0 Touring AFD x 2
    • CAST Brake/Lock Template x 1

    Notes on using CAST Freetour 2.0

    • Make sure to carry the Tech Toe or Pivot toe piece when not in use in your backpack.
    • To remove the toe piece, press and hold the silver release button in the center of the Base Plate and slide it backwards. Also, if there is snow or ice on the Base Plate, remove it before installing it.
    • To lock the brakes, raise the Brake Lock and press down with your boot or with your finger. To release the Brake Lock, grasp the tip of the brake and push it inward to release it.
    • Raise the lever toward you to secure the Tech Toe. When doing so, be careful not to raise the lever too much and make it stick. Two notches are usually sufficient.

    Regarding shipping charges

    Shipping is free (within Japan only).

    Warranty for CAST Freetour 2.0

    CAST products strive to make only the highest quality products to withstand the rigors of skiing. No one wants the downtime of having to shuttle gear back and forth for warranty reasons.

    CAST's products are proven to be strong and durable, and we want to ensure that you can use your products for years to come. CAST covers your product against any issues that may arise due to manufacturing defects.

    The standard warranty period is two years from the date of purchase, but we will also consider warranty issues beyond the standard two year period.

    CAST® Freetour 2.0 voids any warranty, manufacturer's or seller's liability on the part of Group Rossignol USA, Inc. or Look Fixations SAS. Any such remedies shall be directed to CAST. If you encounter any problems with the product, please contact us.
