JigaRex™ Mounting Plate 22 Designs

• If you are not used to using it at first, test the mount on an old ski or piece of wood that you no longer use.

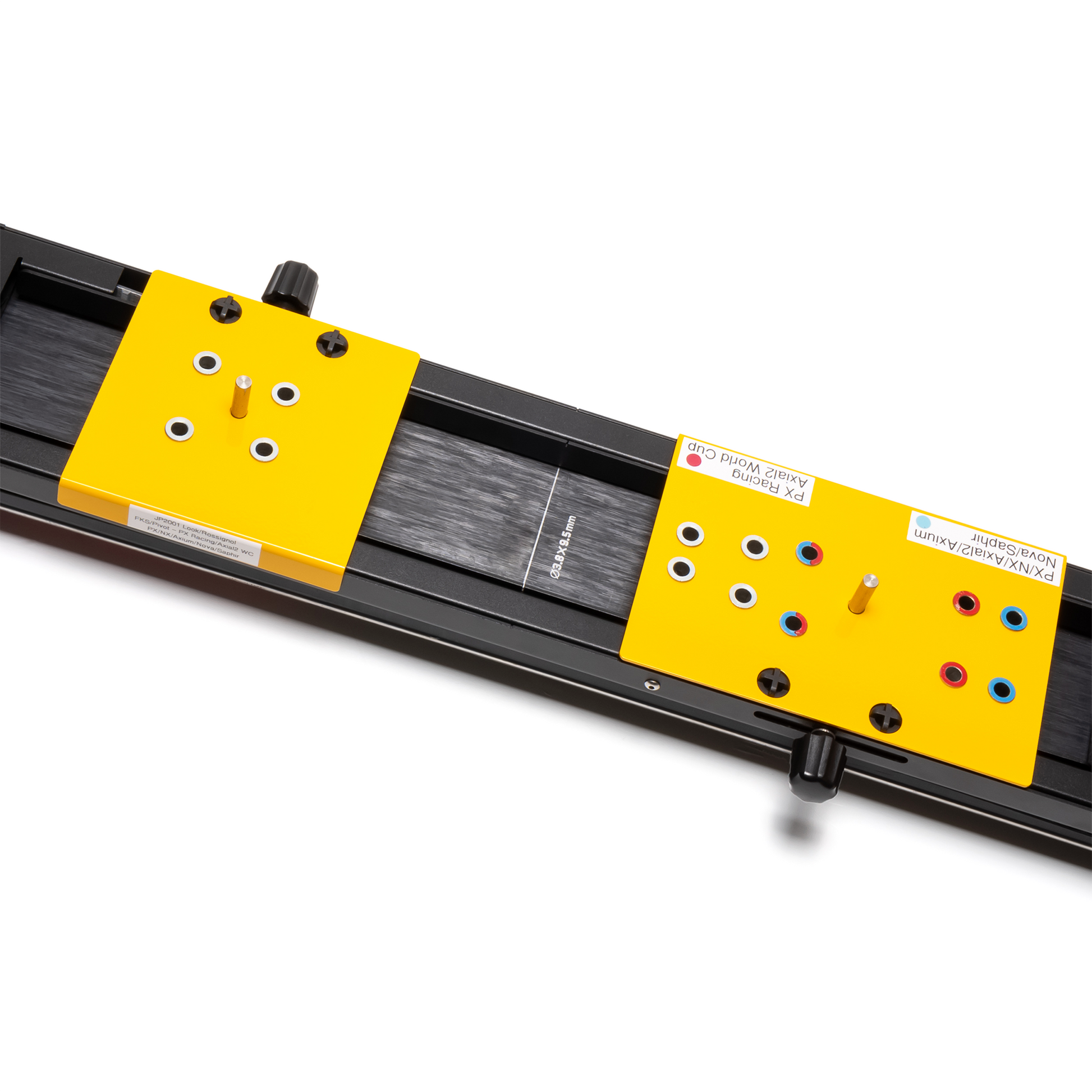

• The center line of the JigaRex™ body is a groove carved into the rail at the center of the body.

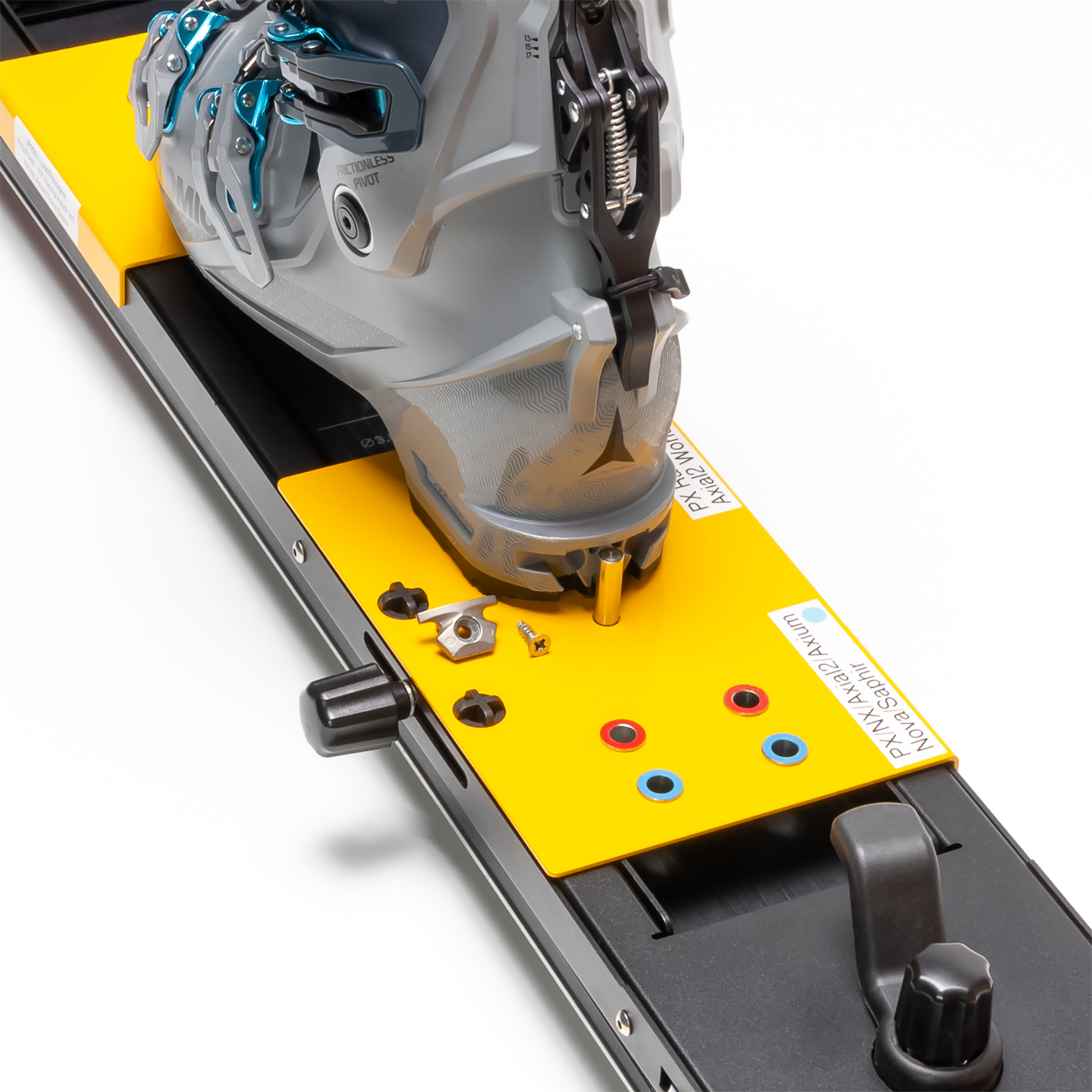

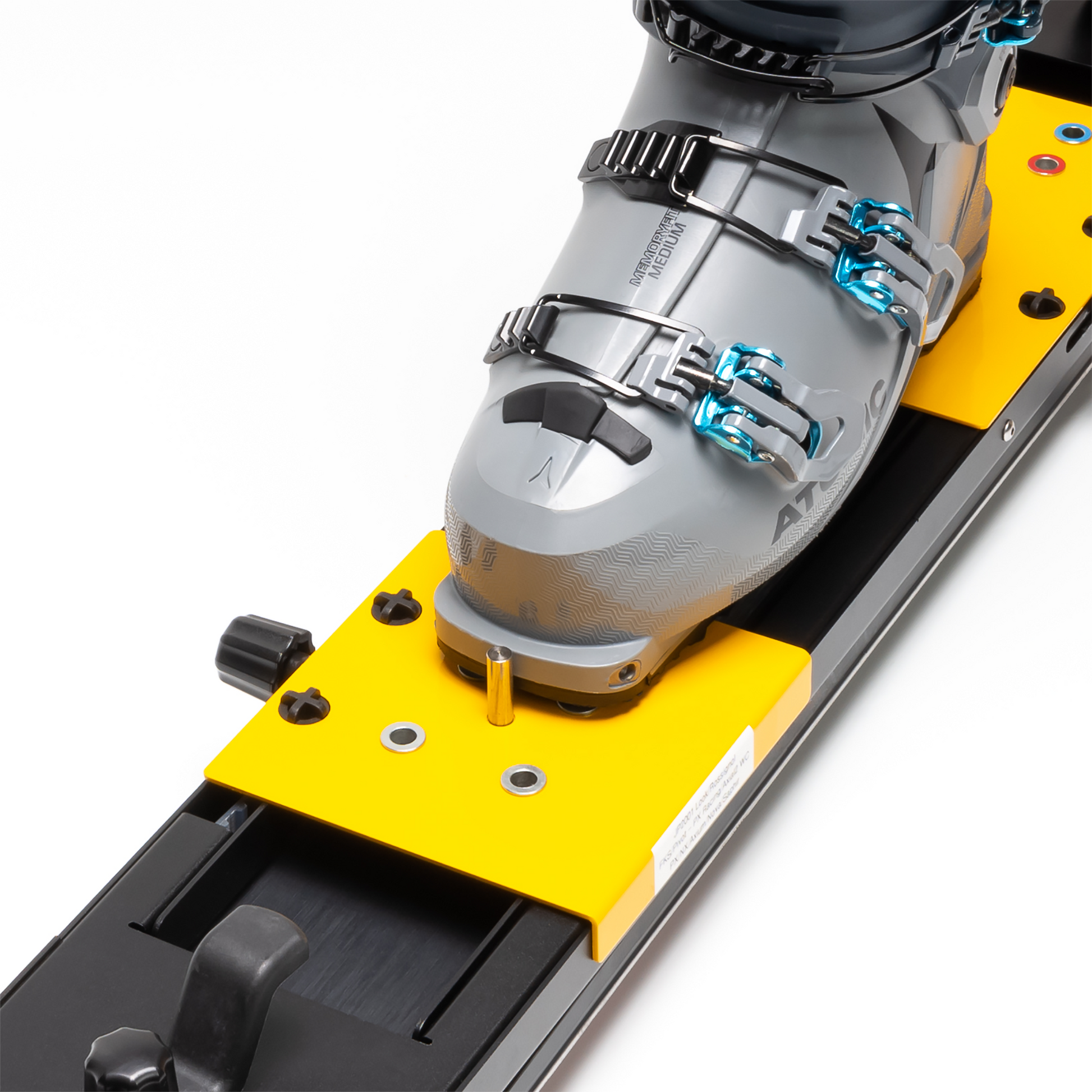

• When attaching to skis, turn the front and rear levers to sandwich the skis, then turn the knob in the center of the lever to firmly close and secure.

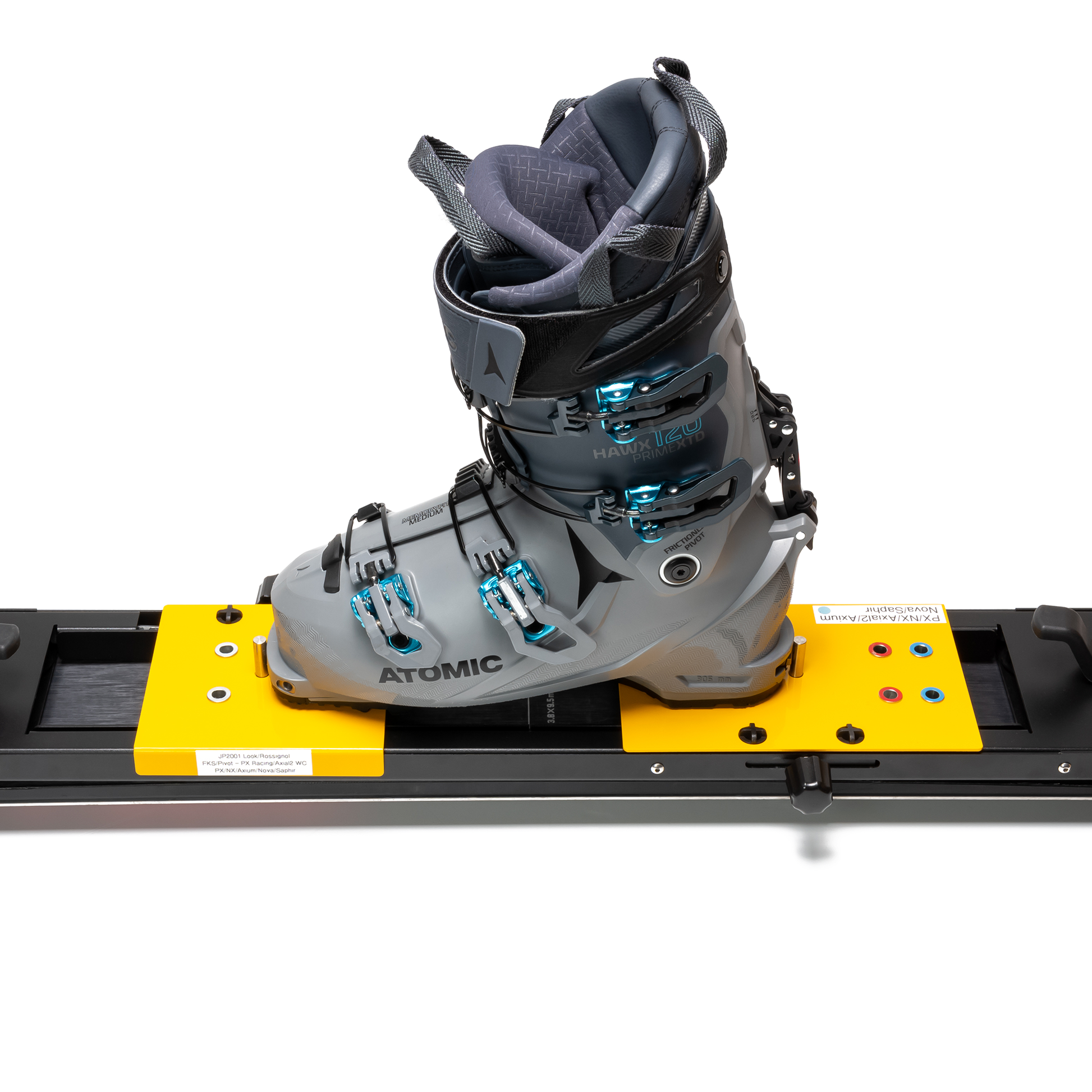

• Turn your binding and JigaRex™ Mounting Plate upside down and make sure the holes are in the correct position.

• Carefully check that the vertical center of the ski is aligned with the center of the JigaRex™, that the sole size of the boot matches, and that you can accurately drill holes in the same position using a template such as a paper gauge. please. Another method is to insert a pencil or pen into the hole in the plate and mark it to check the drill center.

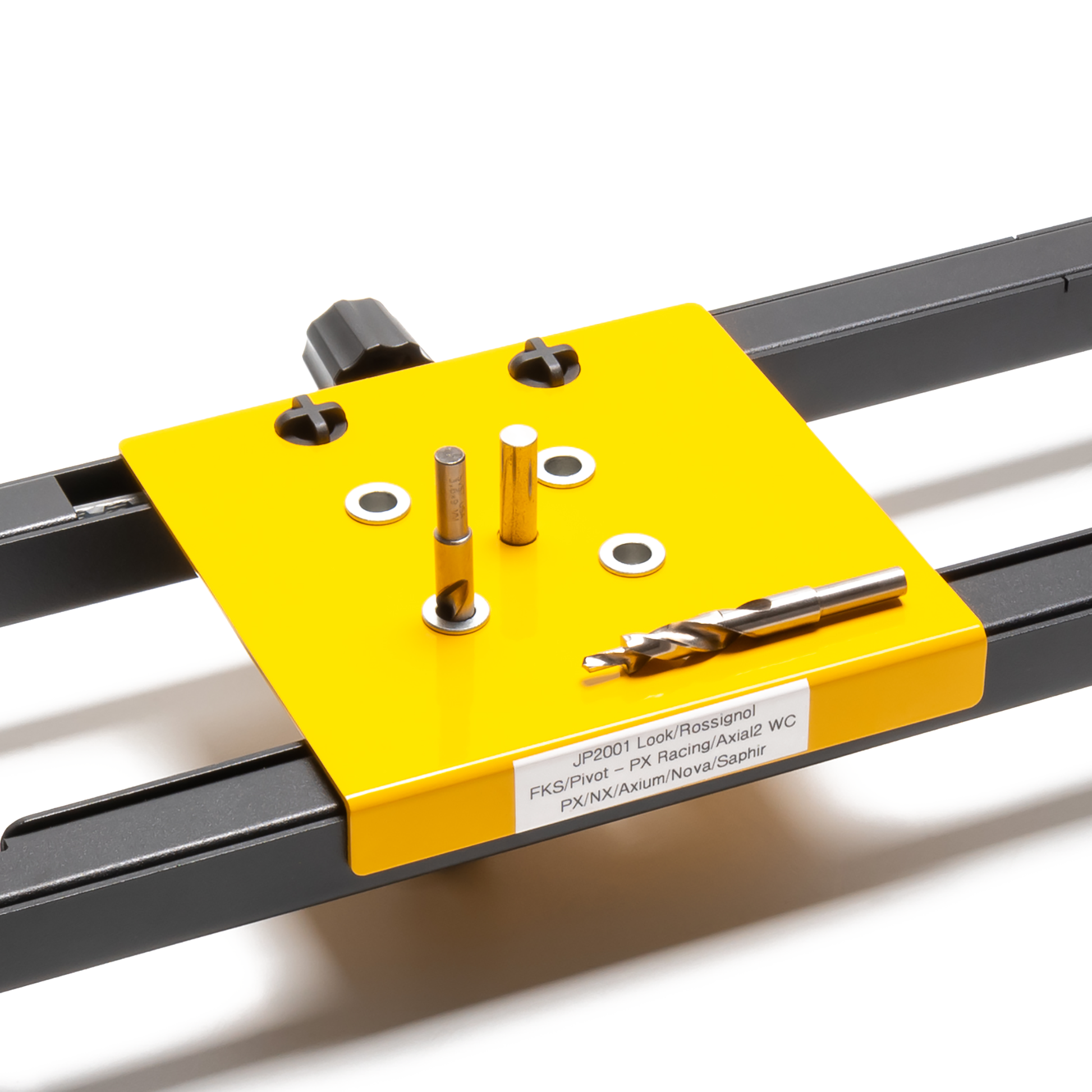

• The hole diameter of the plate is 8.00mm. When drilling holes in the board, always use a standard ski drill bit with a 7.95mm diameter stopper. You can purchase drill bits here .

• As with any equipment when using JigaRex™, it is your responsibility to ensure the quality and safety of your bindings. We are not responsible for any mistakes or mistakes made during installation.

Size 60 (Please check shipping charges at checkout)

Free shipping for purchases over ¥20,000. (Excluding some products)
